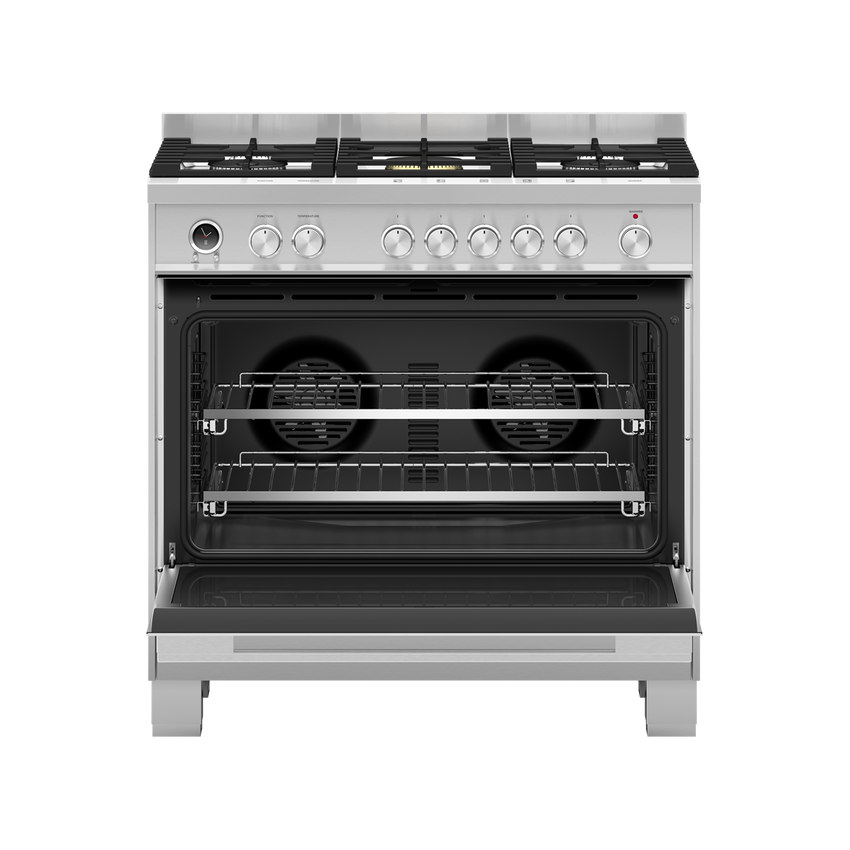

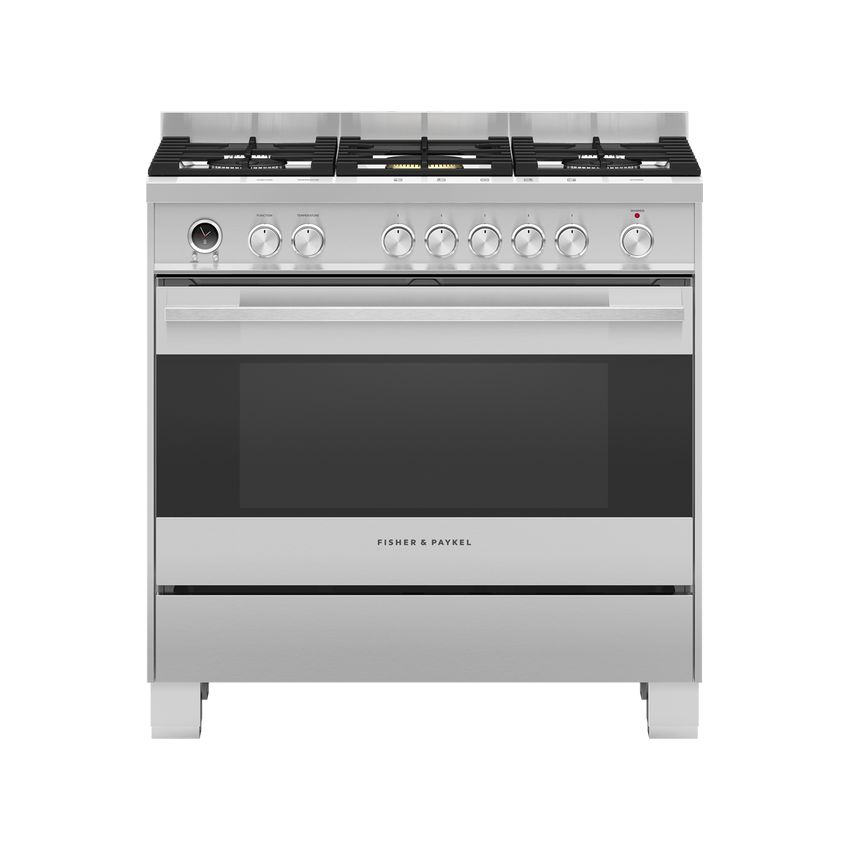

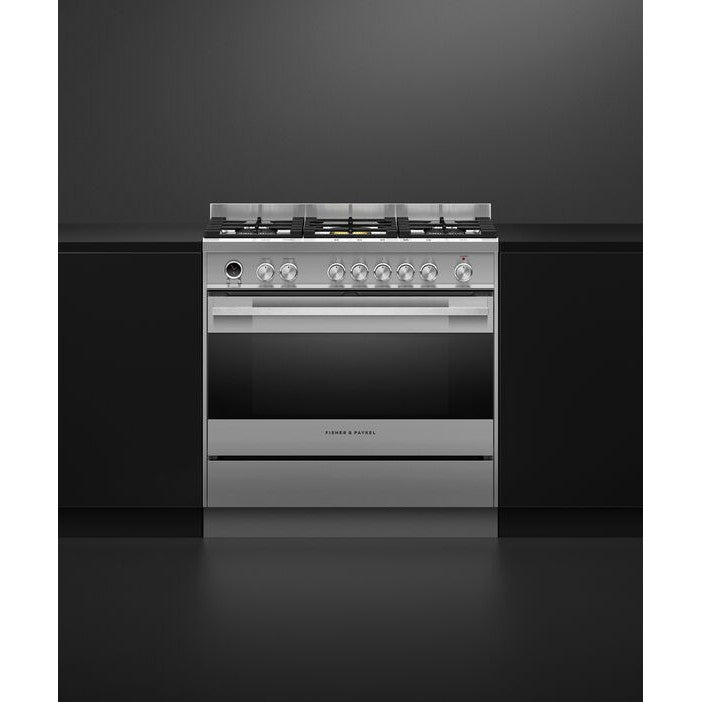

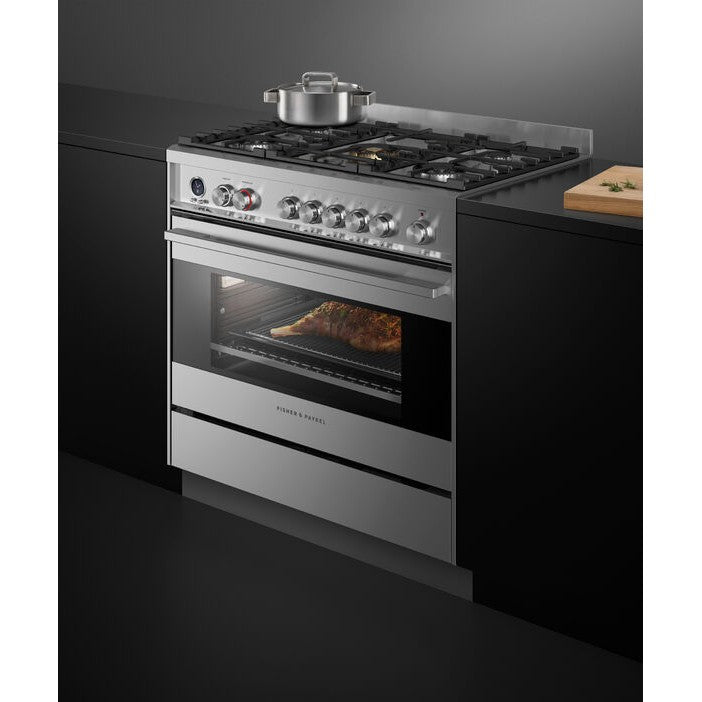

Fisher & Paykel OR90SDG6X1 90cm Dual Fuel Range Cooker

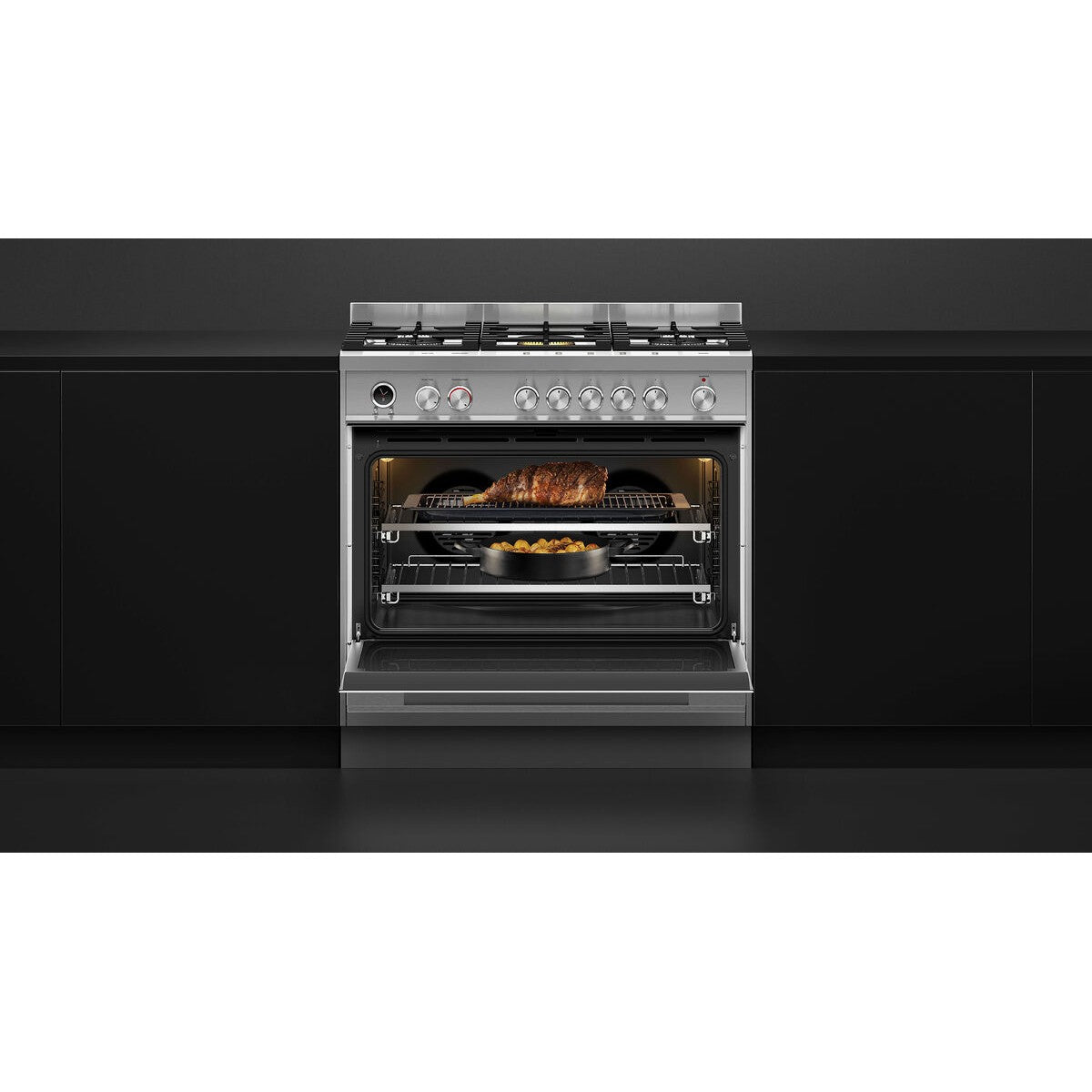

Our AeroTech™ system circulates air evenly throughout the entire oven so dishes on the top shelf turn out just as perfect as food cooking on the bottom shelf.

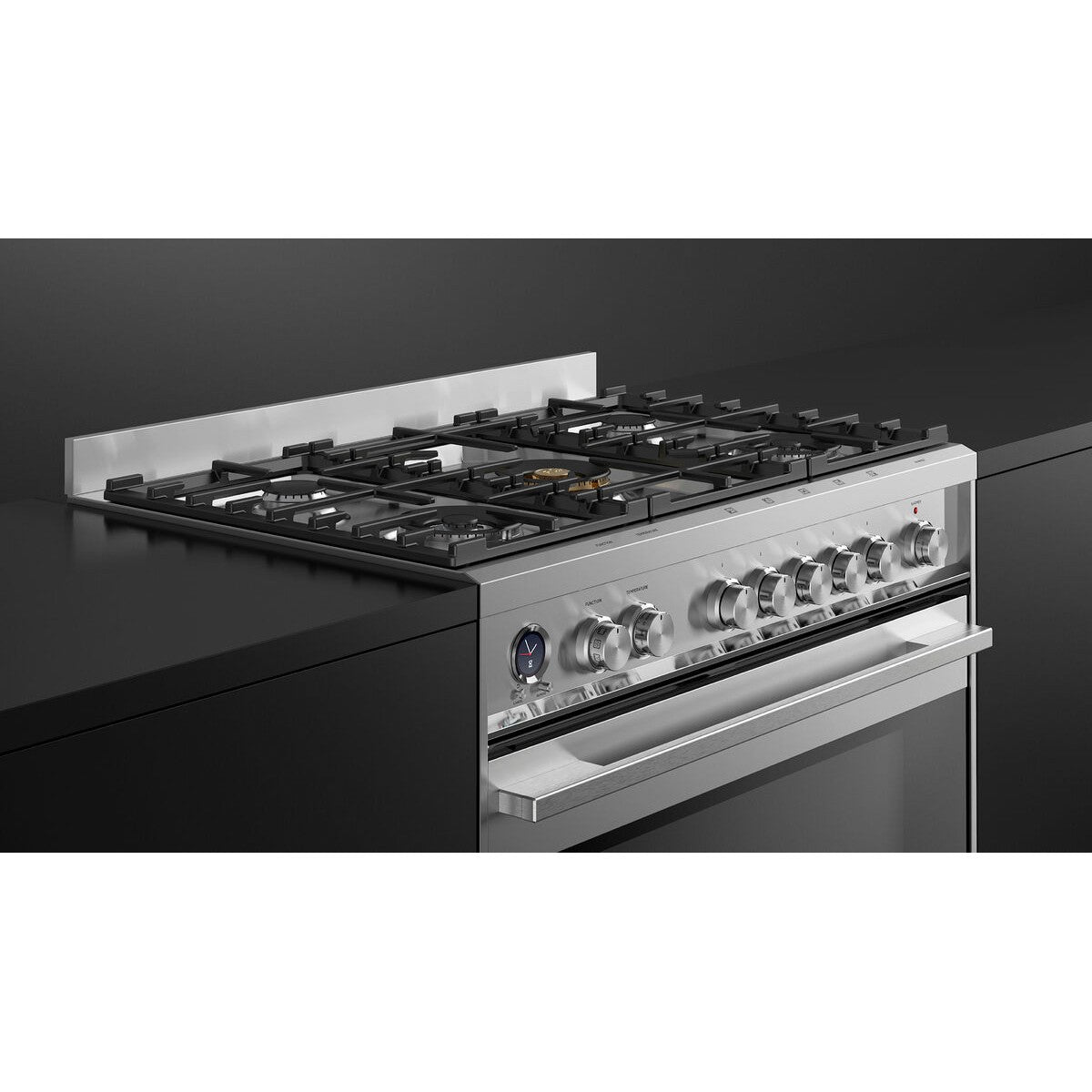

Quality And Durability

Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, precise electric temperature control and chromed cast zinc dials all add up to an exceptional, premium range.

Burner Power & Control

Instant and immediate control from the highest to the gentlest heat. The finely tuned hob controls let you sear, stir fry or simmer a delicate sauce to perfection.

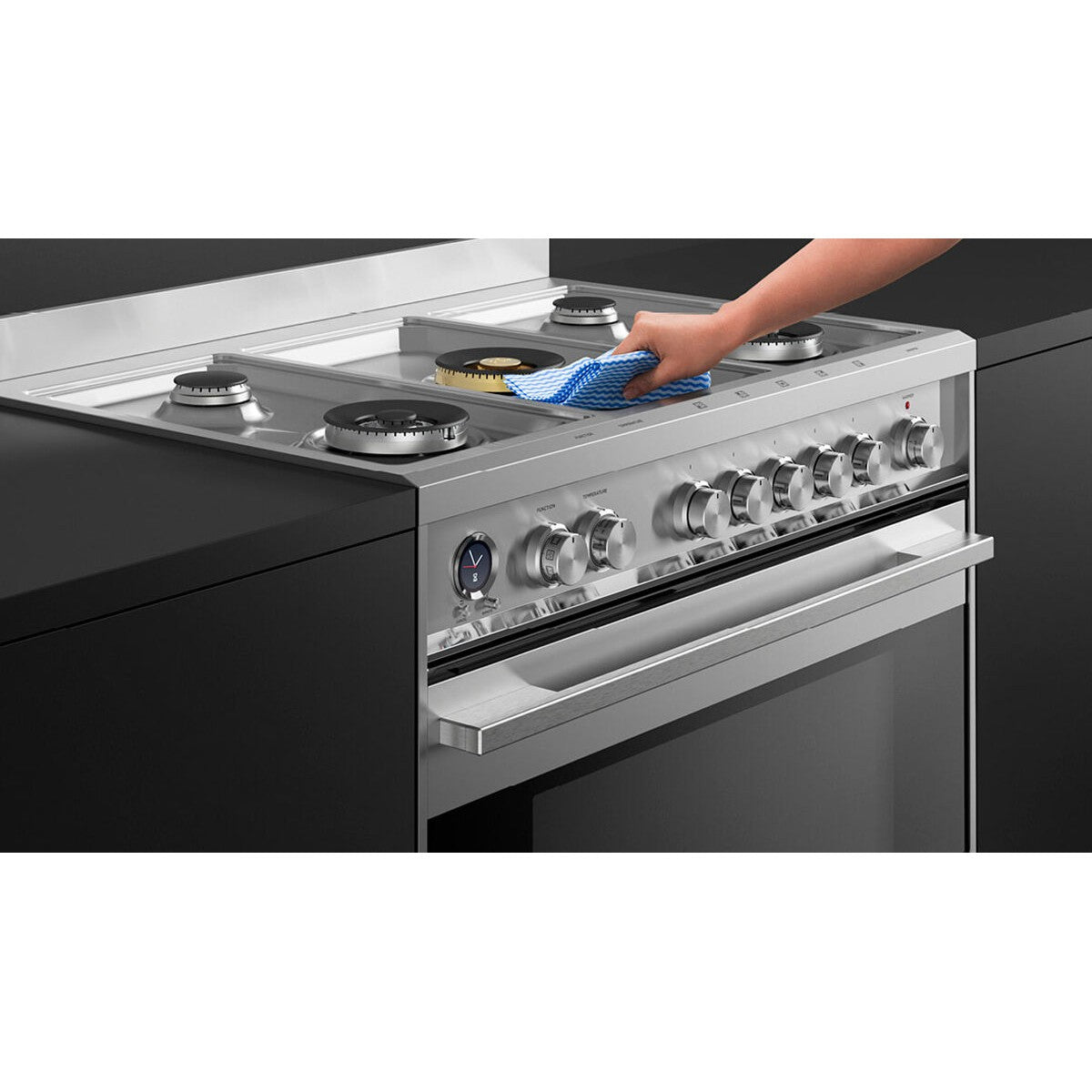

Easy To Clean

Cleaning up spills is effortless. Your hob simply needs a quick wipe to keep it looking good as new. The pyrolytic self-clean oven cycle breaks down food residue at a very high temperature, leaving a light ash that's easily removed with a damp cloth.

Even Heat

Accurate, electronically-controlled oven heat ensures a great result every time.

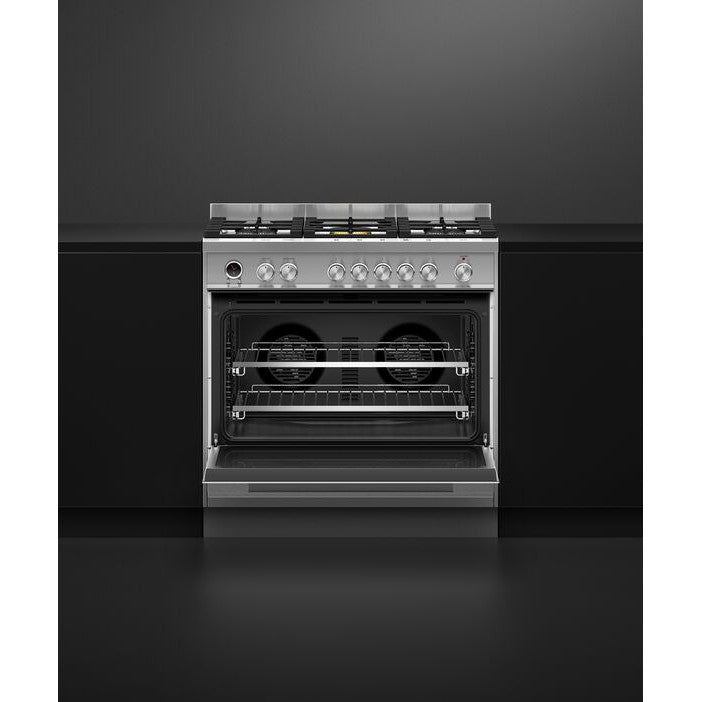

Large Capacity Oven

The generous 140L total capacity oven gives you plenty of space to cook multiple dishes at once.

Specification

Controls

• Audio feedback

• Automatic cooking/minute timer

• Automatic pre-set temperatures

• Celsius/Fahrenheit temperature

• Electronic clock

• High resolution display

• Laser etched graphics

• Precise electronic temperature control

• Turned stainless steel clock buttons

• Turned stainless steel clock crown (dial)

• Turned stainless steel dials with illuminated halos

Oven Features

• AeroTech™ technology

• Automatic rapid pre-heat

• Electronic oven control

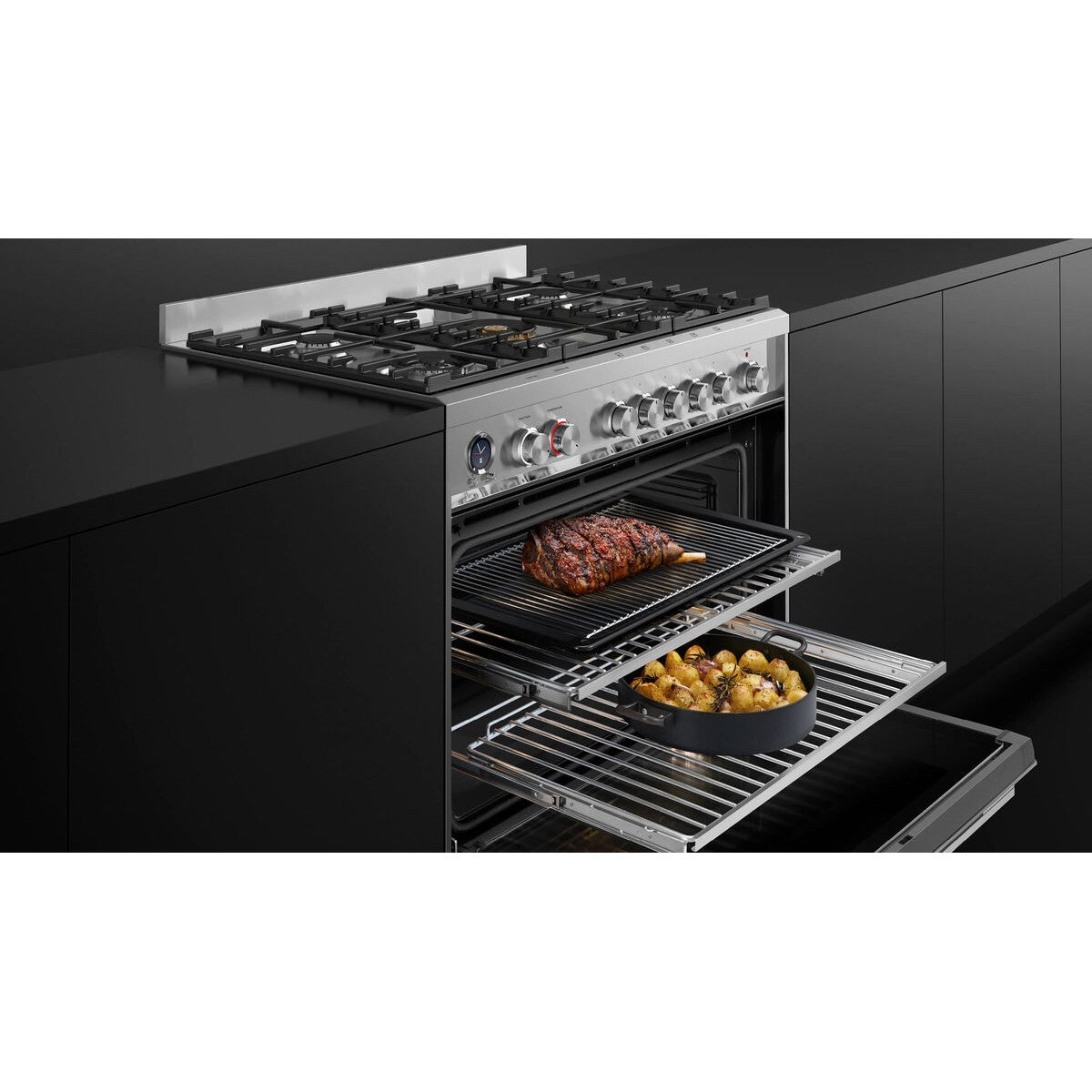

• Full extension telescopic sliding shelves

• Soft open/close door

• True convection

• Twin cavity fans

• Warming drawer

Oven Functions

• True convection
• Number of functions: 9

• Bake

• Energy slow cook

• Fan bake

• Fan forced

• Fan grill

• Grill

• Pastry Bake with Pizza mode

• Roast

• Rotisserie

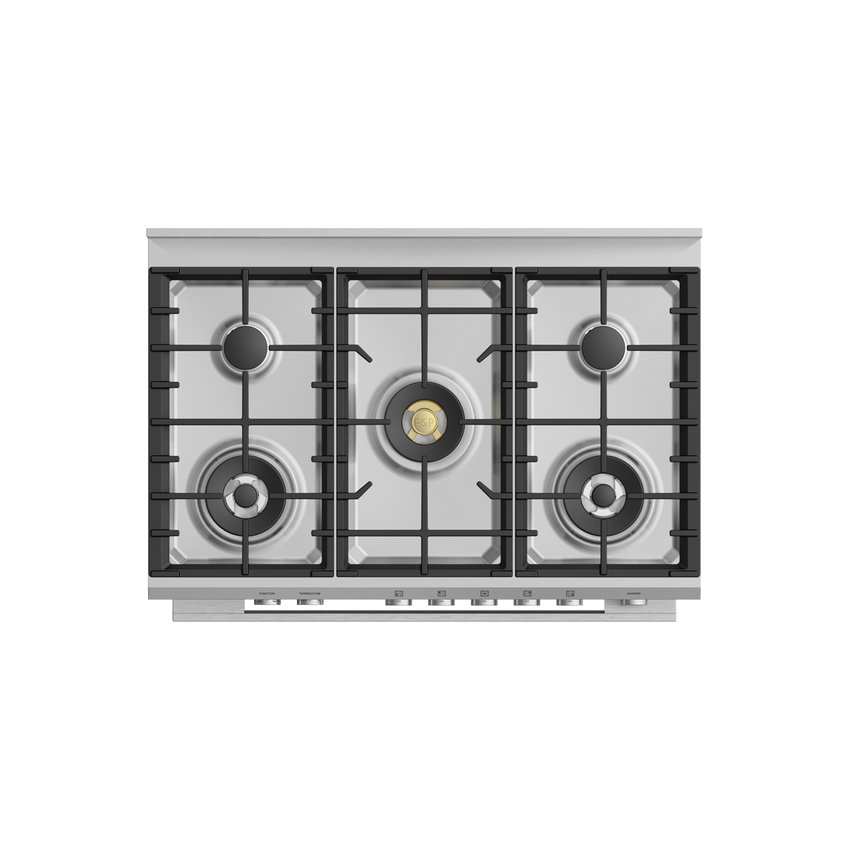

Hob Features

• Brass burner spreader (power burner)

• Embossed brass burner cap (power burner)

• LPG/Natural gas compatible

• Sealed range top

Dimensions and Capacity

• Depth: 600mm

• Height: 898 - 946mm

• Width: 897mm

• Shelf positions (main oven): 6

• Total capacity: 140L

• Usable capacity (main oven): 120L


Technical Information

• Dual wok burner inner/outer (LPG): 0.3 - 4.5kW

• Dual wok burner inner/outer (natural gas): 0.4 - 4.5kW

• Maximum burner power: 4.5kW

• Semi-rapid burner (LPG): 1.2kW

• Semi-rapid burner (natural gas): 1.2kW

• Total cooktop power: 14.9kW

• Triple ring wok burner (LPG) x2: 4.0kW

• Triple ring wok burner (natural gas) x2: 4.0kW

• Energy usage: 1.62kWh/cycle

• In-use energy carbon emissions estimate Carbon Emissions Info: 0.3kgCO2e/cycle

• CoolTouch door: Quadruple glazed

• Warming drawer power: 202W

• Amperage: 23A

• Supply frequency: 50Hz
